Fish feed machine(fish feed extruder)
Fish feed machine description
This fish feed machine also called fish feed pellet mill, is widely used for producing variety materials into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. this fish feed pellet machine set up a fish feed plant with feeder, crusher, mixer, dryer, cooler and other machines. The final feed pellets have unique shape and good taste, high nutrition and smooth textures. For feeds of fish and shrimp, the floating time on water surface can be adjusted by the extrusion degree adjustment when extruding the pellets, an ideal for small and medium fish farm holders for catfish, tilapia, shrimp etc.
Features
1. By adjustment of feed formulation and degree of expansion, the fish feed extruder can produce all kinds of floating, sinking, and slow sinking fish feed pellets.
2. Different molds can be chosen to make pellets with different diameters ( 0.9-15mm ) and shapes.
3. the fish feed extruder has the advantage of high efficiency and low power consumption.
4. Two types of pelletizing solution we can do, that is dry type and wet type.
Dry Type Pelletizing Solution:
No boiler needed in this process, even we need to dry the steam while pellet making. Raw material will be grain, soybean, etc.
Wet Type Pelletizing Solution:
Boiler Steam & conditioner are needed in this process, the steam will fully contact with the cereal and other raw materials.
5. Please be understand, whatever you choose dry type or wet type solutions, this fish feed making machine can make fish feed, shrimp feed, catfish feed, golden fish feed etc kinds of fishes and also pet foods.
After fully cooked and sterilized, the pressed materials will be formed into pellets by shaping die.
Finally the formed pellets will be cutting by the cutter device as required length and discharge.
This fish feed machine also called fish feed pellet mill, is widely used for producing variety materials into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. this fish feed pellet machine set up a fish feed plant with feeder, crusher, mixer, dryer, cooler and other machines. The final feed pellets have unique shape and good taste, high nutrition and smooth textures. For feeds of fish and shrimp, the floating time on water surface can be adjusted by the extrusion degree adjustment when extruding the pellets, an ideal for small and medium fish farm holders for catfish, tilapia, shrimp etc.
1. By adjustment of feed formulation and degree of expansion, the fish feed extruder can produce all kinds of floating, sinking, and slow sinking fish feed pellets.
2. Different molds can be chosen to make pellets with different diameters ( 0.9-15mm ) and shapes.
3. the fish feed extruder has the advantage of high efficiency and low power consumption.
4. Two types of pelletizing solution we can do, that is dry type and wet type.
Dry Type Pelletizing Solution:
No boiler needed in this process, even we need to dry the steam while pellet making. Raw material will be grain, soybean, etc.
Wet Type Pelletizing Solution:
Boiler Steam & conditioner are needed in this process, the steam will fully contact with the cereal and other raw materials.
5. Please be understand, whatever you choose dry type or wet type solutions, this fish feed making machine can make fish feed, shrimp feed, catfish feed, golden fish feed etc kinds of fishes and also pet foods.
Working Process of Floating Fish Feed Extruder (Dry Type)
First raw materials will be send into feeding device to enter the extruder.
Then materials will be pressed by the screw shaft on the function of high pressure and high temperature.First raw materials will be send into feeding device to enter the extruder.
After fully cooked and sterilized, the pressed materials will be formed into pellets by shaping die.
Finally the formed pellets will be cutting by the cutter device as required length and discharge.
Raw Material for Making Fish Feed
The Fish needs some extra feeds along with available natural feeds in water for their regular growth. This extra feeds which are provided to fish is called supplementary feed of fish. The ingredients of supplementary feed for fish are below:
Rice bran
Refined pulse and wheat roughage
Mustard or sesame cake
Fish-meal (fish powder)
Crop grain
Silk kit meal
Blood and innards of bird or animal
Green leaves of various vegetables
Minerals and vitamins
Kitchen leftovers
Maize powder and refined chaff
Dried molasses
and so on.
Rice bran
Refined pulse and wheat roughage
Mustard or sesame cake
Fish-meal (fish powder)
Crop grain
Silk kit meal
Blood and innards of bird or animal
Green leaves of various vegetables
Minerals and vitamins
Kitchen leftovers
Maize powder and refined chaff
Dried molasses
and so on.
Dry granulator

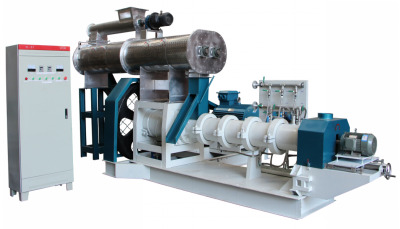

Wet granulator
Wet granulator
| Name | Capacity (t/h) | Host power (kw) | Feeding power (kw) | Spiral diameter (mm) | Cutting power (kw) | Tempering power (kw) |

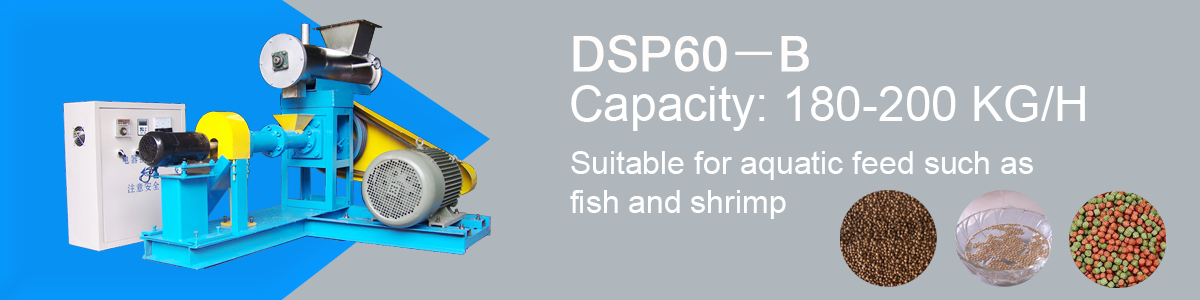

| DSP60-B | 0.18-0.2 | 15 | 0.4 | Φ60 | 0.4 | 0.75 |

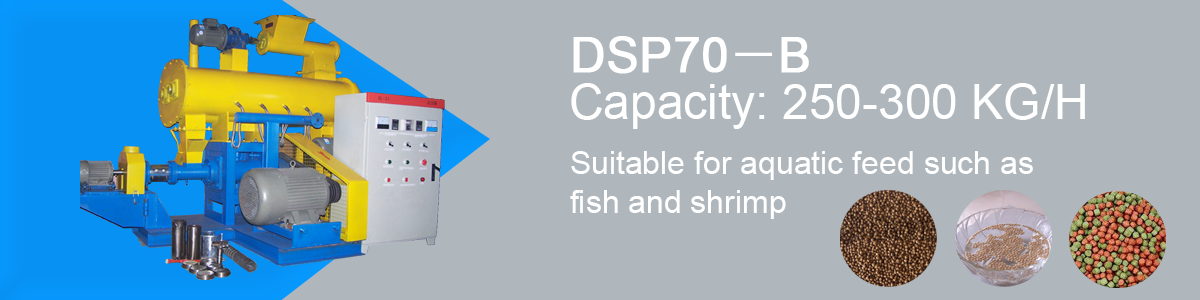

| DSP70-B | 0.25-0.30 | 18.5 | 0.6 | Φ70 | 0.6 | 0.75 |
| DSP80-B | 0.35-0.40 | 22 | 1.1 | Φ80 | 0.8 | 1.1-1.5 |

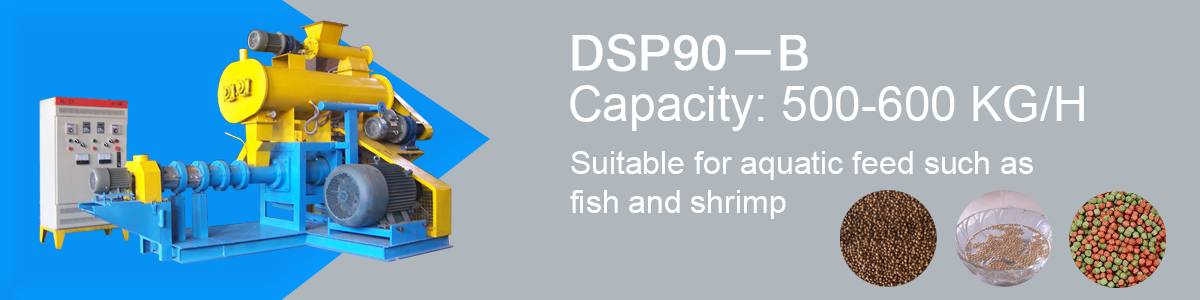

| DSP90-B | 0.50-0.60 | 37 | 1.1 | Φ90 | 1.1 | 2.2 |
| DSP120-B | 0.70-0.80 | 55 | 1.1 | Φ120 | 1.5 | 2.2-3.0 |
| DSP135-B | 1.0-1.2 | 75 | 1.5 | Φ135 | 2.2 | 3.0-4.0 |
| DSP160-B | 1.8-2.0 | 90 | 2.2 | Φ155 | 2.2-3.0 | 4.0-5.5 |
| DSP200-B | 3.0-4.0 | 132 | 2.2 | Φ195 | 3.0-4.0 | 5.5 |
